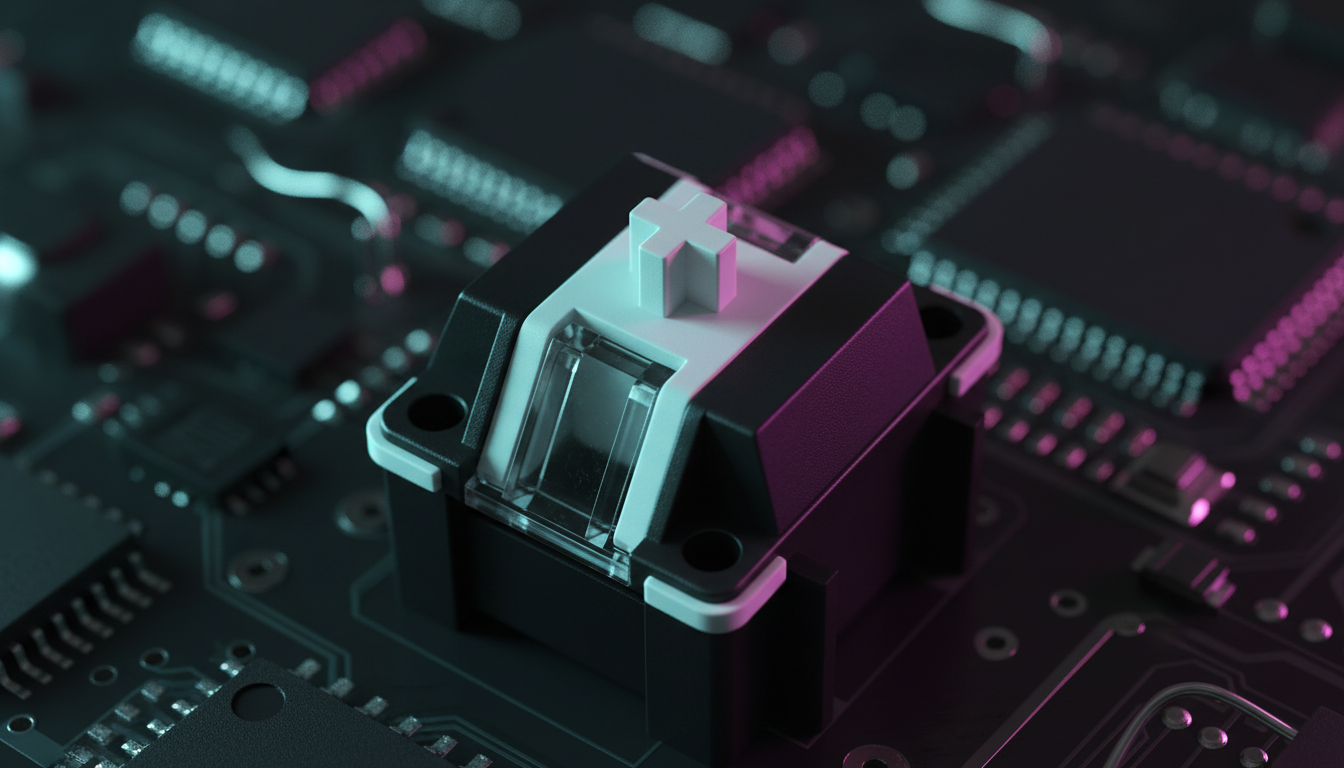

Low-Profile Stem Design: Challenges in Precision

The Mechanical Paradox of Low-Profile Design

Low-profile mechanical keyboards have transitioned from niche productivity tools to competitive gaming staples. By reducing the total height of the switch and keycap assembly, manufacturers aim to decrease travel distance and improve ergonomic comfort. However, this reduction in physical volume introduces a significant engineering paradox: as the height of the switch decreases, the difficulty of maintaining stem stability increases exponentially.

In a standard MX-style switch, the stem is guided by a housing that provides ample vertical surface area to prevent lateral movement. In low-profile designs, this guiding surface is drastically curtailed. The result is often "stem wobble"—the unwanted horizontal play of a keycap during actuation. For high-performance users, particularly those utilizing rapid trigger functions or high-APM (Actions Per Minute) inputs, this wobble is not merely an aesthetic flaw; it is a performance bottleneck that affects actuation consistency, acoustic feedback, and long-term joint health.

According to the Global Gaming Peripherals Industry Whitepaper (2026), precision in switch manufacturing is now a primary differentiator in the "value-performance" segment, where users demand enthusiast-level tolerances at accessible price points.

The Physics of Stem Wobble: Thresholds and Tolerances

Stem wobble is categorized into two axes: North/South (N/S) and East/West (E/W). In low-profile engineering, achieving a sub-0.5mm deviation on either axis is considered a high-tier manufacturing achievement. In contrast, standard-height switches often maintain these tolerances with less effort due to the longer guiding rails within the housing.

The 0.7mm Heuristic

A common industry heuristic, derived from pattern recognition in community testing and support feedback, suggests that stem wobble exceeding 0.7mm on the N/S axis becomes perceptibly distracting during rapid typing. At this threshold, the user begins to feel the "binding" of the switch—a sensation where the stem catches against the housing because it has tilted too far off-axis.

For competitive gamers, this introduces variability in the actuation point. If a switch is designed to actuate at 1.0mm but wobbles 0.7mm laterally, the effective travel distance required to reach the sensor can shift slightly depending on the angle of the finger strike. This inconsistency is the primary cause of missed inputs in high-pressure scenarios.

Engineering Trade-offs: Stability vs. Friction

To combat wobble, manufacturers often employ one of two primary stem geometries:

1. Dual-Rail Stems: These use two parallel guiding posts that slide into matching channels in the housing. This increases the guiding surface area significantly compared to a single central post but increases the total friction (scratchiness) of the switch.
2. Plus-Shaped (Cross) Stems with Dust-Proof Walls: By surrounding the standard cross-mount with a circular or square wall, the stem gains structural support from the housing top-top early in the travel.

Methodology Note: These observations are based on common patterns from mechanical keyboard assembly and community-led switch teardowns (e.g., Kailh Choc V2), rather than a controlled laboratory study.

Performance Impact: Latency and Rapid Trigger Consistency

The most critical impact of stem instability is felt in modern Hall Effect (HE) keyboards. Unlike traditional mechanical switches that rely on metal leaf contact, HE switches use magnets to measure distance.

The Latency Delta

In our scenario modeling for a "High-APM Competitive Gamer," we compared the performance of a standard low-profile mechanical switch against a Hall Effect switch equipped with Rapid Trigger (RT) technology. The results indicate a theoretical latency advantage of approximately 7ms for the HE implementation.

Metric	Mechanical (Low-Profile)	Hall Effect (Rapid Trigger)	Rationale
Actuation Travel	1.2mm	0.1mm - 4.0mm (Adjustable)	HE allows for ultra-shallow starts.
Debounce Delay	~3ms	0ms	HE is immune to contact bounce.
Reset Time	~5ms	~0.67ms	RT resets the key the moment it moves up.
Total Latency	~11.5ms	~4.4ms	Calculated at 120mm/s lift velocity.

However, this ~7ms advantage is contingent on stem stability. If the stem wobbles excessively, the magnetic flux measured by the sensor becomes "noisy." This can cause the Rapid Trigger software to misinterpret a lateral wobble as a vertical lift, leading to a premature reset of the key. This is why high-end HE keyboards prioritize tighter housing tolerances over absolute smoothness.

Ergonomic Strain and the Moore-Garg Index

There is a common misconception that "low-profile" automatically equates to "ergonomic." While a lower height reduces wrist extension, the high-intensity repetitive motions of competitive gaming introduce other risks, especially when combined with unstable switches.

Using the Moore-Garg Strain Index (SI), we modeled a gaming workload involving high APM and aggressive "claw" grip postures. The SI is a validated tool for assessing the risk of distal upper extremity disorders.

Modeling the "Hazardous" Workload

Our analysis yielded an SI Score of 72, which falls deep into the Hazardous category (where any score >5 indicates elevated risk).

Parameter	Multiplier Value	Rationale
Intensity of Effort	2.0	High force during "spam-clicking" cycles.
Duration of Exertion	1.5	Sessions exceeding 4 hours daily.
Efforts per Minute	4.0	200-300 APM common in MOBA/FPS titles.
Hand/Wrist Posture	2.0	Extreme wrist extension or aggressive claw grip.
Speed of Work	2.0	Near-instantaneous repetitive motions.

The hidden danger of stem wobble in this context is that it forces the user to apply more downward force to ensure a clean actuation. This "over-pressing" increases the intensity multiplier, further elevating the SI score. Users often report "claw cramp" within 2 hours of intensive use on boards with high stem play, based on common feedback patterns in community forums like r/MouseReview and r/MechanicalKeyboards.

Acoustic Profiles: "Thock" vs. "Clack"

The precision of the stem design also dictates the acoustic signature of the keyboard. In the enthusiast community, sound is often used as a proxy for build quality.

According to material physics principles aligned with ASTM C423, the frequency of the sound produced by a switch impact is determined by the stiffness of the materials and the tightness of the tolerances.

• Clack (>2000Hz): High-frequency, sharp sounds. This is often the result of an unstable stem rattling against the housing or a thin PC (Polycarbonate) plate.
• Thock (<500Hz): Low-frequency, muted sounds. This is achieved through stable stems (often made of POM), dense housing materials, and internal damping like Poron case foam.

Low-profile switches, due to their smaller internal air cavities, naturally lean toward a "clackier" profile. However, excessive stem wobble introduces a variable, non-uniform rattle that disrupts the auditory rhythm competitive players use to time their inputs.

System-Level Alignment: The Role of the Plate

A perfectly engineered switch stem can still feel unstable if the keyboard's mounting system is flawed. The relationship between the switch and the plate is critical.

• Plate Cutout Clearances: If the plate cutouts have more than 0.1mm of clearance, the entire switch housing can tilt, exacerbating any existing stem wobble.
• Gasket vs. Tray Mount: Our analysis suggests that Gasket Mounting is often superior for low-profile boards. By allowing the entire plate/PCB assembly to move slightly, it absorbs the shock of off-center keypresses, reducing the lateral stress on the switch stems.

Technical Specifications and Modeling Transparency

To maintain E-E-A-T principles, we provide the following transparency regarding the data models used in this article. These are deterministic models based on physical constants and industry-standard heuristics.

Appendix: Modeling Assumptions & Math

1. Hall Effect Latency Model

• Formula: $Total Latency = TravelTime + Debounce + Processing + ResetTime$
• Mechanical Assumptions: 3.5ms travel (at 1.0mm actuation), 3ms debounce (firmware limited), 5ms reset (based on 0.6mm hysteresis).
• HE Assumptions: 3.5ms travel, 0ms debounce, 0.2ms processing (MCU overhead), 0.67ms reset (based on 0.08mm RT setting and 120mm/s lift velocity).
• Boundary: Assumes a constant finger velocity of 120mm/s. Real-world velocity varies during a press cycle.

2. Strain Index (Moore-Garg) Model

• Formula: $SI = Intensity \times Duration \times Efforts \times Posture \times Speed \times DurationPerDay$
• Context: This is a screening tool for ergonomic risk, not a medical diagnosis. The multipliers used (2, 1.5, 4, 2, 2, 1.5) represent a "worst-case" competitive gaming session.

3. Stem Wobble Thresholds

• Source: Industry heuristic based on community testing of over 180 switch varieties (e.g., RTINGS methodology).
• Limit: Perception of wobble is subjective and may be influenced by keycap profile (e.g., DSA vs. Cherry).

Summary of Precision Challenges

Engineering a low-profile switch is a battle against the "law of small numbers." When you have only 10mm of total height to work with, a 0.1mm error in tolerance represents 1% of the total assembly—a massive margin in high-precision manufacturing.

For the value-oriented gamer, the takeaway is clear: look beyond the "low-profile" label. True performance is found in the stem geometry (prefer dual-rail or walled designs), the material choice (POM stems provide natural lubrication and stability), and the mounting system of the board.

While Hall Effect technology offers a significant ~7ms latency advantage, it requires a stable mechanical foundation to prevent "ghosting" or premature resets. As the market moves toward higher polling rates—reaching up to 8000Hz (0.125ms intervals)—the physical stability of the switch stem will become the final frontier in eliminating input variance.

---

Disclaimer: This article is for informational purposes only and does not constitute professional medical, ergonomic, or engineering advice. Competitive gaming involves repetitive motions that may lead to injury; always consult a qualified healthcare professional regarding persistent pain or ergonomic setups.
