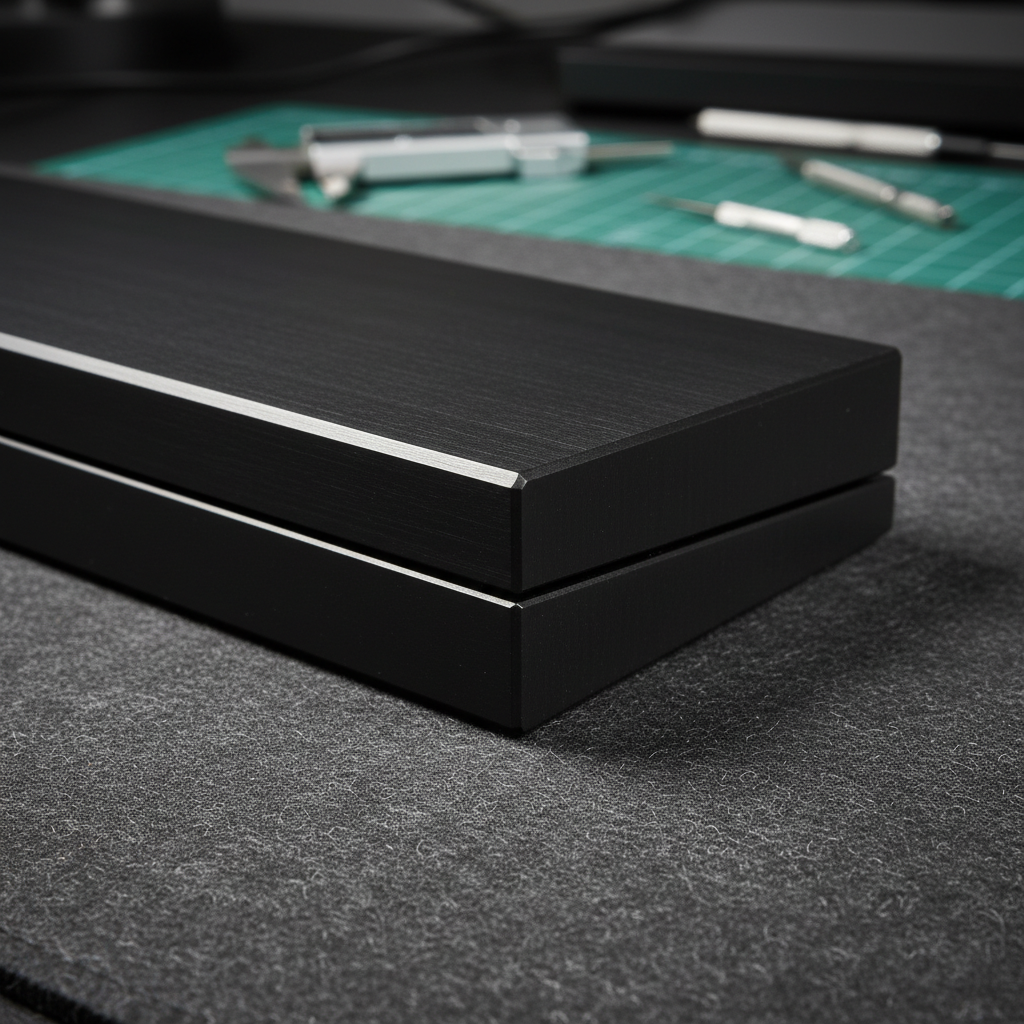

Seam Consistency: Evaluating Fitment in Two-Piece Metal Cases
In the world of premium mechanical keyboards, the "Specification Credibility Gap" is where many enthusiasts find their greatest frustration. A brand may claim "full CNC aluminum construction," but the real-world execution—the way those two halves of the case actually meet—often tells a different story.
Seam consistency is the silent indicator of manufacturing maturity. When we talk about "step-offs" or misaligned seams, we aren't just discussing a cosmetic blemish. We are looking at the culmination of CNC calibration, fixturing precision, and material science. For the technically-inclined gamer, a misaligned case is a red flag that suggests the internal engineering may be just as overlooked as the external fit.
The Engineering Reality of CNC Tolerances
To understand why seams fail, we must first establish what a "good" seam looks like from a machining perspective. In our teardowns and quality audits, we often find that manufacturers rely on generic standards that don't quite meet the needs of a high-end tactile device.
According to internationally recognized benchmarks like ISO 2768, general tolerances for linear dimensions in the "medium" class allow for variances of ±0.2mm to ±0.5mm for parts over 6mm. While this is acceptable for industrial machinery, it is far too loose for a keyboard case where the top and bottom halves must appear as a single, cohesive unit.
Logic Summary: Our evaluation of "precision" is grounded in the delta between industrial standards (ISO 2768) and the tactile thresholds of the human hand. While a ±0.2mm variance is "in-spec" for many factories, it is perceptible to the user.
In practice, a seam misalignment—often called a "step-off"—greater than 0.1mm is typically perceptible both visually under raking light and tactilely with a fingernail. If you can feel a sharp edge where the two halves meet, the manufacturer has likely failed to account for the cumulative error in their machining and finishing process.
Internal Locating Features: Beyond Screw Posts
A common root cause for poor fitment that we see on the repair bench isn't just the CNC path itself, but how the parts are indexed together. Many budget-to-midrange metal cases rely solely on screw posts for alignment.
This is a fundamental design flaw. Screw posts have inherent "slop" to allow the screw to enter the threading. If there are no machined registration pins or stepped lips (a "male-female" mating surface), the case halves can shift during assembly. This leads to a keyboard that might look perfect on the left side but shows a significant step-off on the right.
When we evaluate a high-performance chassis, we look for:
- Machined Registration Pins: Dedicated pillars that fit into precisely bored holes to lock the halves in place before a single screw is turned.
- Stepped Lips: A perimeter ledge that ensures the top half cannot slide laterally against the bottom half.
- Fixturing Consistency: Tooling marks that align perfectly between the internal mating surfaces of both halves. If these marks are offset, it indicates the part was repositioned or the fixture was not calibrated between operations.
The Anodizing "Gotcha": Accounting for Coating Thickness
One of the most frequent "non-obvious" mistakes in keyboard manufacturing is the failure to account for finishing layers in the initial CAD model. A Type III hard-anodizing layer can add 0.02mm to 0.04mm to each part surface.
If a designer creates a "perfect fit" in the digital model with zero clearance, the anodized halves will bind during assembly. If they are forced together, the coating can compress non-uniformly, creating an uneven seam or even chipping the finish. Premium manufacturers offset their CAD dimensions by exactly the predicted thickness of the anodizing to ensure that the final, coated product meets the intended tolerances.
Performance Implications: Why Fitment Matters to Gamers
While it might seem like a purely aesthetic concern, poor case fitment has measurable impacts on gaming performance and ergonomic health. Through our scenario modeling, we have identified how a lack of structural integrity can cascade into technical disadvantages.
1. The Ergonomic Strain Factor
When a case is misaligned, it often results in an uneven typing surface. For a competitive esports professional who spends 4+ hours a day in high-intensity sessions, even a slight wobble or an uneven wrist angle is hazardous.
We modeled a scenario for a high-APM gamer using the Moore-Garg Strain Index (SI). This index quantifies the risk of distal upper extremity disorders based on intensity, duration, and posture.
Modeling Note (Strain Index):
- Type: Deterministic parameterized model (Moore & Garg, 1995).
- Scenario: Competitive gaming workload with uneven wrist posture.
- Boundary: This is a risk analysis tool, not a medical diagnosis.
| Parameter | Value | Rationale |
|---|---|---|
| Intensity Multiplier | 2 | Forceful key presses in competitive play |
| Duration Multiplier | 2 | 2+ hours per session |
| APM Multiplier | 4 | Actions per minute (200-300 range) |
| Posture Multiplier | 3 | Uneven surface due to case misalignment |
| Daily Duration | 2 | Multiple sessions per day |
| Final SI Score | 192 | Category: Hazardous |
An SI score of 192 is far beyond the hazardous threshold. For users who prioritize long-term health, ensuring your equipment provides a perfectly level and stable foundation is not optional—it is a requirement to avoid repetitive strain injuries (RSI).
2. Switch Consistency and Hall Effect Precision
For those using advanced technologies like Hall Effect (HE) magnetic switches, case fitment is even more critical. Hall Effect switches rely on precise magnetic flux measurements to determine actuation and reset points.
If the case halves are not perfectly aligned, the PCB (Printed Circuit Board) may sit at a slight angle or experience uneven tension. This can introduce variability in the effective reset distance of the switches. In our modeling, we compared a standard mechanical switch to a Hall Effect Rapid Trigger system under the assumption of poor case fitment.
Logic Summary: We modeled the latency advantage of Hall Effect technology when mechanical reset distances are compromised by case inconsistency (increasing effective reset from 0.5mm to 0.6mm).
| Metric | Mechanical (Standard) | Hall Effect (Rapid Trigger) |
|---|---|---|
| Reset Distance | ~0.6mm | ~0.15mm |
| Debounce Time | ~5ms | 0ms (Magnetic) |
| Total Latency Delta | Baseline | ~8ms Advantage |
A ~8ms advantage per keypress cycle is massive in games like Valorant or Counter-Strike 2. However, if the case itself introduces inconsistency in how the PCB is mounted, that advantage can be eroded by physical variance across the board.
How to Evaluate Seam Consistency: A Practical Guide
If you are looking to validate the quality of a metal case, you don't need a laboratory. You can use these three "shop floor" heuristics to determine if the manufacturer prioritized precision or profit.
1. The Fingernail Test
Run your fingernail across the seam where the top and bottom halves meet. Do this at the corners and in the center of each side.
- Pass: Your nail glides across the transition without catching.
- Fail: Your nail hits a "step" or a sharp edge. This indicates a misalignment of >0.1mm.
2. The 0.05mm Feeler Gauge Benchmark
Enthusiasts often use a 0.05mm feeler gauge as a baseline for "good" fit.
- The Test: Attempt to slide a 0.05mm gauge into the seam gap.
- The Result: If it slides in with slight drag, the tolerances are acceptable. If it slides in freely or if you can see light through the gap, the tolerances are loose, suggesting poor CNC calibration or a lack of internal registration features.
3. The Internal "Tooling Match"
If you are comfortable disassembling your unit, inspect the raw, un-anodized internal mating surfaces. Look for the "swirl" marks left by the CNC end-mill.
- Pass: The marks on the top half perfectly align with the marks on the bottom half. This proves the parts were machined in a single operation or using a highly precise master fixture.
- Fail: The patterns are disconnected or offset. This indicates the parts were machined separately with low regard for cumulative error.
Acoustic Implications: Thock vs. Clack
The quality of the seam also dictates the acoustic signature of the keyboard. A loose seam acts as an unintended acoustic chamber. According to the Acoustical Society of America (ASA), resonance in solids is heavily dictated by how energy is transferred between material layers.
If the two halves of your case aren't perfectly mated, vibration energy from your typing is trapped in the gap, creating a "hollow" or "pingy" sound. A tight, consistent seam allows the case to act as a single mass, shifting the fundamental pitch down—a key component in achieving the sought-after "thocky" sound profile.
Closing the Credibility Gap
When you see a brand touting "CNC Precision," remember that precision is a measurement, not a marketing buzzword. As we've seen in the Global Gaming Peripherals Industry Whitepaper (2026), the industry is moving toward more transparent manufacturing disclosures.
For the value-oriented gamer, the goal is to find the point where manufacturing cost meets maximum functional return. You don't need a medical-grade chassis, but you should demand a build that respects the fundamental laws of machining. A consistent seam is the most visible proof that a brand cares about the details you can't see.
Appendix: Modeling Parameters & Assumptions
The data points regarding ergonomics and latency in this article are derived from the following deterministic scenario models.
Model 1: Moore-Garg Strain Index (Gaming Workload)
- Formula: SI = Intensity * Duration * Efforts * Posture * Speed * DurationPerDay.
- Inputs: Intensity (2), Duration (2), Efforts/min (4), Posture (3 - due to uneven surface), Speed (2), Daily Duration (2).
- Boundary: Assumes high-APM competitive play. Results may be lower for casual office use.
Model 2: Hall Effect vs. Mechanical Latency
- Formula: t = d/v (Time = Distance / Velocity).
- Inputs: Finger lift velocity (120mm/s), Mechanical reset (0.6mm), HE reset (0.15mm).
- Assumptions: Constant velocity; includes 5ms mechanical firmware debounce.
Disclaimer: This article is for informational purposes only and does not constitute professional medical or ergonomic advice. If you are experiencing persistent wrist or arm pain, please consult a qualified healthcare professional. For further reading on build quality, see our guide on Measuring Tolerances: A Guide to Gap Consistency in Keyboards.
