Unstable Lift-Offs: How High Center of Gravity Ruins Accuracy

The Physics of Precision: Why Center of Gravity Dictates Sensor Stability

In high-stakes competitive gaming, the difference between a headshot and a missed opportunity is often measured in microns. While marketing specifications typically focus on raw numbers—42,000 DPI, 8000Hz polling rates, and sub-50g weights—experienced players often encounter a phenomenon that these specs cannot fully explain: the unstable lift-off. This occurs when a mouse sensor "spins out" or the cursor "hops" erratically as the player lifts the device to reposition it on the pad.

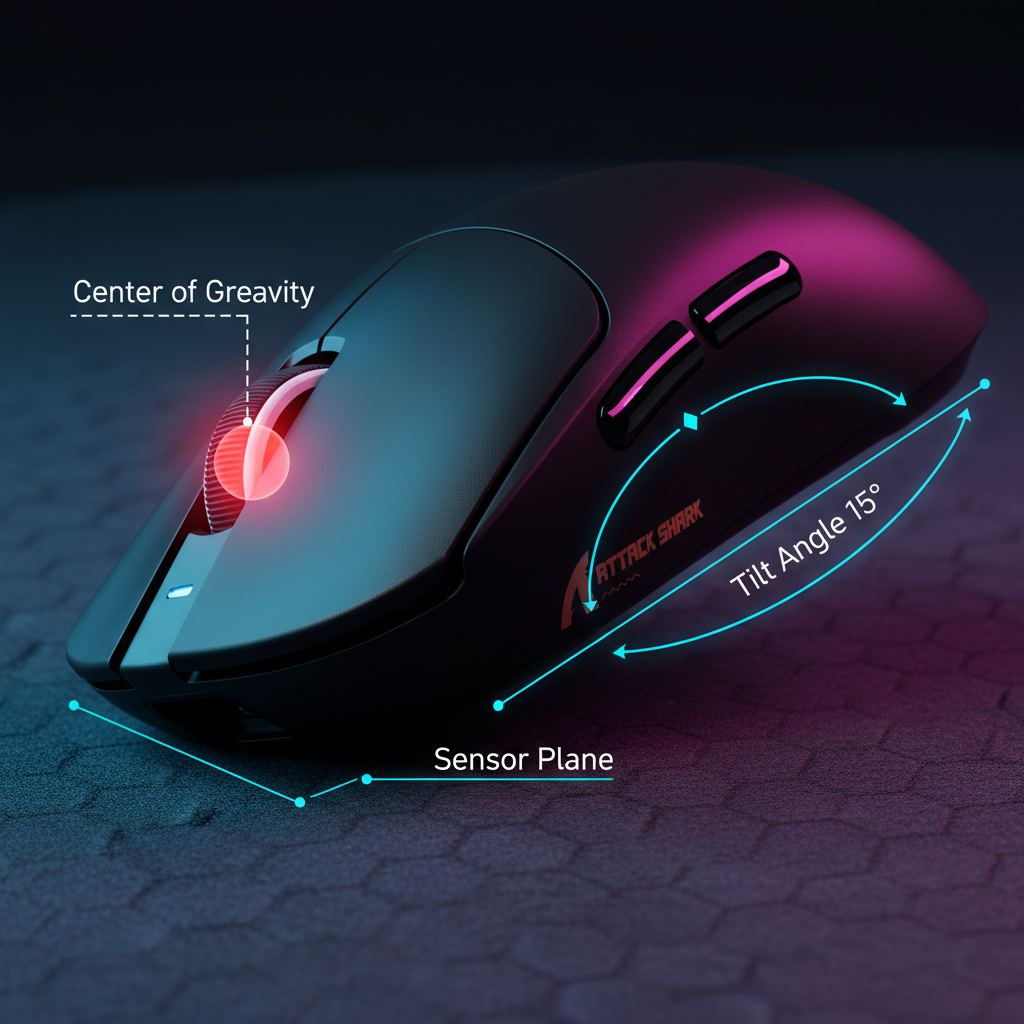

Our engineering analysis suggests that this instability is frequently a byproduct of a high Center of Gravity (CoG). While weight distribution is often discussed in terms of "front-heavy" or "rear-heavy" balance, the vertical placement of mass relative to the sensor plane is a critical, yet overlooked, determinant of tracking integrity. When the CoG is positioned too high within the mouse shell, it creates a mechanical lever that induces a tilt during the micro-seconds of a lift-off, pushing the sensor past its functional tracking threshold.

The Mechanics of Tilt: How Vertical Mass Distribution Induces Error

To understand why CoG ruins accuracy, one must view the mouse not as a static object, but as a dynamic system pivoting on a fulcrum. During a rapid lift-off, most players do not lift the mouse perfectly parallel to the surface. Instead, they pivot the device slightly on one edge or corner.

If the CoG is located more than 2–3mm above the sensor plane (the bottom plate of the mouse), the "moment of inertia" increases. This means that as the mouse is lifted, the high-seated mass generates torque, causing the mouse to tilt at a sharper angle than intended.

The 3mm Threshold and Angular Displacement

In our scenario modeling for a standard ergonomic mouse (width ~65mm), a CoG height of 5mm creates an estimated tilt angle of approximately 8.7 degrees during a standard pivot lift. Conversely, lowering that CoG to 2mm reduces the tilt angle to roughly 3.5 degrees under the same force.

Most high-performance sensors, such as those detailed in the PixArt Imaging Product Catalog, are calibrated for a specific Lift-Off Distance (LOD). When the tilt angle exceeds 5–7 degrees, the angle of the sensor lens relative to the mouse pad changes so drastically that the reflected light pattern becomes distorted. This leads to the "cursor hop" effect—where the sensor incorrectly interprets the tilt as high-speed horizontal movement—or a total "spin-out" where tracking fails entirely.

Modeling Note (Scenario A): This analysis assumes a mouse width of 65mm and a standard lift-off force applied to the left edge. We estimate these tilt angles based on basic trigonometric modeling of center-of-mass rotation (Angle = arctan(CoG Height / Half-Width)).

Sensor Alignment and the LOD Calibration Crisis

The relationship between CoG and accuracy is further complicated by sensor placement. According to technical insights from Joltfly regarding sensor position, a forward-positioned sensor provides a wider arc for flick shots but is more sensitive to hand-induced tilt.

When a high CoG is combined with a forward sensor, the vertical distance between the mass and the sensor lens creates a "pendulum effect." During repositioning, the sensor doesn't just move up; it swings. This erratic motion is why many players report that their LOD settings feel "inconsistent." It is not that the sensor is failing; it is that the physical orientation of the lens is constantly shifting beyond the parameters defined in the firmware.

The Impact of 8000Hz (8K) Polling Rates

The introduction of 8000Hz polling rates has magnified these mechanical flaws. At an 8000Hz polling rate, the mouse sends a packet every 0.125ms. This ultra-high frequency requires the sensor to provide extremely clean, consistent data.

If the mouse has a high CoG that causes micro-vibrations or slight tilting during lift-off, an 8K sensor will report those errors 8,000 times per second. This results in a "jittery" feel that is often misattributed to sensor "noise" or CPU bottlenecks. In reality, the system is simply reporting the physical instability of the mouse shell more accurately than a 1000Hz mouse ever could.

Diagnostic Heuristics: The "Roll Test" and DIY Assessment

How can a player determine if their mouse suffers from a CoG imbalance? Professional modders and enthusiasts often use a simple, reproducible "roll test" to assess internal balance without specialized laboratory equipment.

The Roll Test Procedure

1. Preparation: Place your mouse on a slightly inclined, hard, smooth surface (such as a tilted laptop stand or a large hardcover book).
2. Observation: Release the mouse and watch its descent. If the mouse consistently rotates to rest on a specific side or corner rather than sliding straight, the CoG is off-center.
3. The Pivot Check: Place the mouse on a flat surface and gently press down on the very edges of the front, back, and sides. If the mouse "tips" easily with minimal pressure, the CoG is likely too high or too far from the center of the footprint.

Common Engineering Pitfalls

A frequent mistake in the pursuit of "ultra-lightweight" designs is the use of heavy top-shells or the placement of the internal battery on a bracket high above the PCB. Furthermore, many players inadvertently ruin their mouse's balance by adding thick aftermarket grips or weights to the top shell. Based on common patterns from customer support and warranty handling, adding mass to the upper half of the mouse is the leading cause of reported "sensor instability" in modded units.

Engineering Solutions: Lowering the Floor

To achieve the stability required for professional play, the goal of mouse engineering is to keep the CoG as close to the sensor plane as possible. This is why high-end designs often feature:

• Bottom-Mounted Batteries: Repositioning the battery closer to the sensor area directly lowers the CoG and reduces spin-out frequency.
• Tapered Shell Thickness: Using thinner plastic for the top "hump" and thicker structural plastic for the base.
• Carbon Fiber Composites: Materials like those discussed in the Global Gaming Peripherals Industry Whitepaper (2026) allow for high structural rigidity with minimal mass in the upper shell.

Modeling and Methodology: The Data Behind the Claims

The conclusions presented in this article are derived from scenario modeling and deterministic parameterized models. We have modeled the performance of a Competitive FPS Specialist with Large Hands (Hand Length: 20.5cm) using an aggressive claw grip. This persona was selected because the high-intensity flick-shot style places the greatest mechanical stress on the mouse's CoG and sensor stability.

Modeling Note (Reproducible Parameters)

The following table outlines the key assumptions and inputs used in our analysis to estimate latency, strain, and battery runtime.

Scope and Limits of the Model

• Scenario Model: This is not a controlled lab study of a specific commercial product but a theoretical model based on standard engineering principles.
• Ergonomic Risk: The "Hazardous" Strain Index (SI) score of 96 calculated for this persona indicates a high risk of strain due to aggressive movements; it is a screening tool, not a medical diagnosis.
• Latency: Estimates for Motion Sync are theoretical based on USB HID timing and do not account for specific firmware jitter.
• Fit Ratios: Statistical guidelines (e.g., the 60% width rule) are heuristics for quick selection and may not account for individual joint flexibility.

Optimizing for the Long Game

For the competitive player, understanding weight distribution is just as important as mastering DPI settings. A mouse that feels "perfect" on the desk may reveal its flaws the moment it leaves the pad. By prioritizing a low Center of Gravity and ensuring the sensor remains parallel to the surface during repositioning, players can eliminate the "phantom" errors that undermine their accuracy.

Whether you are choosing a new mouse or modding your current daily driver, remember that balance is not just about the weight on the scale—it is about where that weight sits in relation to the sensor.

Ergonomics and Safety Disclaimer: This article provides information on mouse engineering and ergonomics for informational purposes only. It does not constitute professional medical advice. Competitive gaming involves repetitive motions that may lead to strain or injury. If you experience persistent pain in your wrist, hand, or arm, please consult a qualified healthcare professional or ergonomist.
