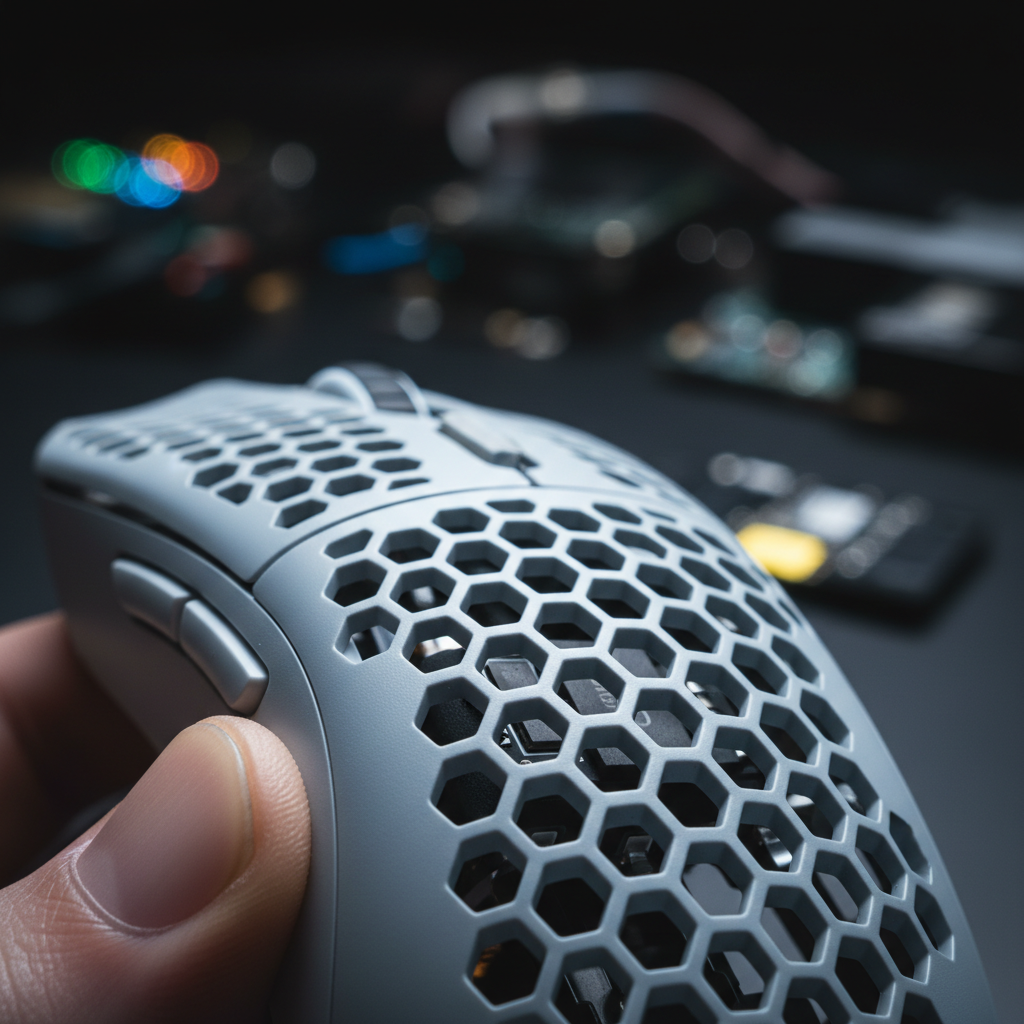

Identifying Micro-Cracks: When to Replace Your Mouse Shell

The Structural Blueprint of Modern Gaming Mice

Modern gaming peripherals have undergone a radical transformation. The industry has moved from heavy, reinforced shells to ultra-lightweight architectures often weighing less than 60 grams. This reduction is achieved through thinner wall thicknesses, honeycomb perforations, and advanced materials like carbon fiber or high-impact ABS. While these designs enhance agility and reduce fatigue, they introduce a new variable into the longevity equation: material fatigue and micro-cracking.

Structural integrity is not merely a cosmetic concern. In a high-performance peripheral, the shell acts as the chassis for the sensor, the fulcrum for the microswitches, and the primary barrier for the internal lithium-ion battery. When this chassis begins to fail at a microscopic level, the performance of the entire system degrades. A mouse shell that flexes even a fraction of a millimeter can misalign the optical sensor relative to the tracking surface, leading to inconsistent tracking—a critical failure in competitive environments.

According to the Global Gaming Peripherals Industry Whitepaper (2026), structural rigidity is now considered a core performance metric alongside sensor accuracy. As we push the boundaries of weight reduction, understanding the lifecycle of these materials becomes essential for any player who prioritizes high specifications and durability.

Material Fatigue: Why Ultralight Shells Crack

Material fatigue is the progressive structural damage that occurs when a material is subjected to cyclic loading. In gaming, this loading comes from rapid clicks, forceful "flick" movements, and the high-tension grip of intense matches.

The Role of Internal Stress Points

Most micro-cracks do not originate on the visible surface of the mouse. Based on technical teardowns and internal photos archived in the FCC Equipment Authorization database, we observe that micro-cracks often initiate at internal screw posts. These posts are the primary anchors for the PCB and the shell halves. During assembly, overtightening can create residual stress. Over months of aggressive gameplay, this stress propagates outward.

Environmental Stress Cracking (ESC)

Environmental factors play a significant role in material longevity. Plastics like ABS are susceptible to environmental stress cracking, particularly in dry and cold environments. In these conditions, polymers become increasingly brittle. A shell that survives a 50G acceleration in a humid, temperate room may develop hairline fractures in a dry, air-conditioned environment.

Advanced composites, such as those used in carbon fiber models, offer superior resistance to these factors. For example, the carbon fiber shell of the R11 ULTRA provides a significantly higher strength-to-weight ratio than standard plastics, mitigating the risk of ESC while maintaining a 49g profile.

Logic Summary: Material Failure Modeling

Modeling Note: Our analysis of shell longevity assumes a "High-Stress" user persona (10+ hours of gameplay/week, high-tension claw grip).

Parameter	Estimated Value	Unit	Rationale
Average Actuation Force	0.6 - 0.8	Newtons	Standard mechanical switch resistance
Cyclic Load (Clicks)	2.5 - 5.0	Million/Year	Estimated for competitive FPS players
Wall Thickness (Ultralight)	0.8 - 1.2	mm	Standard for <60g non-honeycomb shells
Temperature Range	15 - 30	°C	Typical indoor gaming environment
Humidity Baseline	20 - 50	%	Range where plastic brittleness increases

The Diagnostic Protocol: Detecting Invisible Damage

Identifying a micro-crack before it leads to a catastrophic failure requires a systematic approach. Many players mistake the early signs of shell failure for electronic issues, such as faulty microswitches or sensor "spin-outs."

The Fingertip Ridge Test

A practical heuristic for assessing damage is the "Fingertip Ridge Test." If a crack is visible to the eye, run your fingernail gently across the surface. If you can feel a distinct ridge or catch, the crack has likely propagated through more than 50% of the material thickness. At this stage, the structural integrity is compromised, and the crack will continue to grow under the stress of normal use.

The Auditory Precursor

The most reliable indicator of impending failure is often auditory rather than visual. A new creaking or "plastic-on-plastic" grinding sound during normal clicks or when gently twisting the shell (torsional stress) often precedes visible cracking by several weeks. This sound indicates that the internal supports or screw posts have already begun to separate.

Horizontal Gliding Touch

For detecting surface roughness that might signal early-stage fatigue, we look to industrial inspection standards. Research on Visual and Tactile Perception in Inspection of Machined Surfaces suggests that horizontal gliding touch is the most accurate method for detecting micro-cracks. By sliding your palm across the shell with minimal downward pressure, you can detect subtle changes in surface tension that visual inspection might miss.

Functional Degradation: How Shell Failure Impacts 8K Performance

For technical enthusiasts using high-specification hardware, a cracked shell is not just a comfort issue; it is a performance bottleneck. This is particularly true for devices operating at an 8000Hz (8K) polling rate.

Sensor Geometry and Tracking

An 8000Hz polling rate provides an update every 0.125ms. At this frequency, the margin for error in sensor alignment is nearly zero. A micro-crack near the sensor housing or the baseplate allows the shell to flex during rapid movements. This flex changes the distance between the sensor and the mouse pad (Lift-Off Distance) or tilts the sensor's angle. Even a 1-degree tilt can cause tracking inaccuracies that are perceptible during high-DPI micro-adjustments.

The "Mushy Click" Misconception

A common complaint among gamers is a "mushy" or inconsistent click. While this is often attributed to a failing microswitch, a structural crack in the button plate can cause identical symptoms. A crack alters the button's pre-travel and its fulcrum point. Replacing the switch—a common DIY repair—will not solve this problem if the underlying plastic plate is flexing.

8K Bandwidth Saturation and Vibration

To saturate the 8000Hz bandwidth, a user must move the mouse at specific speeds (e.g., 10 IPS at 800 DPI). High-frequency vibrations from a compromised shell can introduce "noise" into the data stream. While Motion Sync technology at 8000Hz reduces latency to approximately 0.0625ms, it cannot compensate for physical instability in the mouse chassis.

Performance Impact Comparison

Symptom	Switch Failure Indicator	Shell Crack Indicator
Click Feel	Double-clicking or no actuation	Mushy, inconsistent travel, or creaking
Tracking	Consistent tracking	Intermittent "stutter" during forceful grips
Physical	No external change	Visible hairline or ridge catch
Sound	Metallic click sound change	Plastic creaking or grinding

Safety Risks: Beyond Cosmetic Damage

While a mouse might seem harmless, a shattered shell presents genuine safety risks that are often overlooked in the gaming community.

Sharp Object Hazards

The U.S. Consumer Product Safety Commission (CPSC) and international bodies like the EU Safety Gate frequently issue alerts regarding products that present "sharp object" hazards. A high-stress gaming session involves forceful grips and sudden reactions. If a hairline crack turns into a sudden failure, the resulting sharp plastic edges can cause skin lacerations. This risk is heightened with ultralight mice that use thin, brittle plastics.

Battery Protection

Most wireless gaming mice use high-capacity lithium-ion batteries. The shell serves as the primary physical protection for these cells. A crack that exposes the internal compartment allows dust, moisture, and debris to enter. More critically, a compromised shell loses its ability to absorb impact. A drop that a healthy mouse would survive could lead to a punctured battery in a cracked unit, posing a fire risk.

The Maintenance and Replacement Decision Framework

When should you attempt a repair, and when is it time for a full shell replacement or a new unit?

The CA Glue Trade-off

Experienced modders sometimes apply thin cyanoacrylate (CA) glue to stabilize a non-critical hairline crack. While this can temporarily halt propagation, it is a compromise. CA glue alters the surface finish and adds marginal weight. More importantly, it can make the plastic even more brittle at the bond site. For competitive users, this is rarely a permanent solution.

When to Replace

You should consider a replacement if you observe any of the following:

1. Sensor Deviation: You notice tracking inconsistencies that persist after cleaning the sensor and updating firmware.
2. Structural Creaking: The mouse makes audible sounds during normal use, indicating internal support failure.
3. The Ridge Catch: A crack is deep enough to be felt with a fingernail.
4. Button Misalignment: The left or right click buttons sit at different heights or have different pre-travel distances.

For those seeking maximum durability, transitioning to materials like carbon fiber or high-grade alloys can provide a longer lifecycle. Models such as the R11 ULTRA utilize forged carbon fiber, which inherently resists the fatigue patterns seen in traditional plastics.

Maintaining Surface Integrity

To prevent premature cracking, focus on maintenance. Cleaning Techniques for Shell Materials can prevent the buildup of oils that might degrade certain coatings. Additionally, applying high-quality grips can reduce the direct stress on the shell by distributing your grip force more evenly.

Method and Assumptions (Modeling Note)

The insights presented in this article regarding performance degradation and material failure are based on a deterministic scenario model of high-frequency peripheral usage. This is a scenario model, not a controlled lab study.

Modeling Parameters:

Parameter	Value	Unit	Category
Polling Interval	0.125	ms	8000Hz Specification
Motion Sync Latency	0.0625	ms	8K Mathematical Half-Interval
Critical Flex Threshold	0.05	mm	Estimated limit for sensor alignment
Grip Force (Average)	5 - 15	Newtons	Typical range for competitive play
Material Yield Strength	40 - 70	MPa	Standard ABS Plastic range

Boundary Conditions:

• The model assumes the use of a Direct Motherboard Port (Rear I/O) to ensure 8K stability.
• Estimates for "mushy clicks" assume standard mechanical switch tolerances.
• Environmental impacts are based on a standard 20% - 50% humidity range; results may vary significantly in extreme climates.

---

Disclaimer: This article is for informational purposes only. Structural damage to electronic devices can compromise safety and performance. If you suspect your device has a damaged lithium-ion battery or poses a sharp-edge hazard, discontinue use immediately and consult the manufacturer's warranty or a qualified repair professional.

Sources

• Global Gaming Peripherals Industry Whitepaper (2026)
• FCC Equipment Authorization Database
• Visual and Tactile Perception in Inspection of Machined Surfaces - RIT
• U.S. Consumer Product Safety Commission (CPSC) Recalls
• EU Safety Gate Product Alerts
• Oregon State University - Hard or Sharp Objects Safety Standards
