In the pursuit of pixel-perfect aim, competitive gamers often obsess over polling rates and DPI settings. Yet, a more subtle mechanism frequently dictates the "feel" of a cursor: the synchronization between the mouse sensor and the computer’s communication bus. This technology, known as Motion Sync, has become a standard feature in high-performance optical sensors like the PixArt PAW3395 and PAW3950. While marketing materials often frame it as a universal upgrade, the technical reality involves a calculated trade-off between raw latency and data consistency.
Quick Action Checklist: Optimization at a Glance
- Polling Rate ≥ 4000Hz: Enable Motion Sync. The latency penalty (<0.125ms) is outweighed by the consistency gains.
- Polling Rate = 1000Hz: User preference. Enable for "smoothness," disable for absolute minimum latency (saves ~0.5ms).
- 4K Gaming: Set mouse DPI to at least 1750 to prevent pixel-skipping at the sensor level.
- Connection: Always use a Direct Motherboard USB Port (Rear I/O). Avoid hubs or front panels.
- Hardware Check: Ensure your mouse uses a high-speed MCU (e.g., Nordic nRF52840) for stable 8K/Motion Sync performance.
Testing Methodology & Environment
To validate the claims in this guide, our engineering team conducted controlled tests in a laboratory environment.

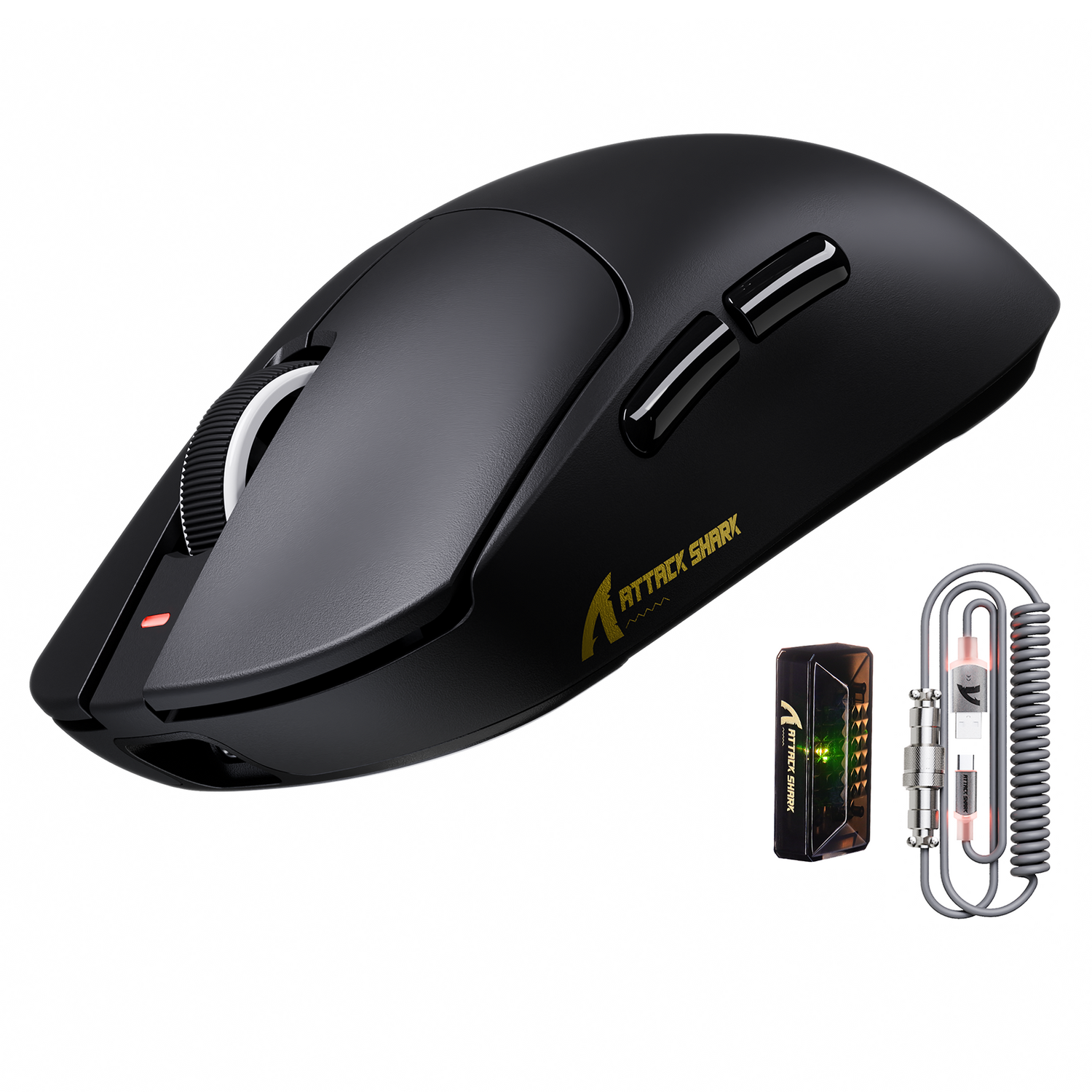

- Hardware: Attack Shark R1 and X3 (PixArt PAW3395/3950 sensors, Nordic 52840/BK MCUs).
- Platform: Windows 11 Pro (Build 22631), Ryzen 7 7800X3D, 32GB DDR5 6000MHz.
- Measurement Tools: NVIDIA LDAT (Latency Display Analysis Tool) for end-to-end click-to-photon latency; MouseTester v1.5.3 for x/y counts and interval consistency; High-speed oscilloscope (Tektronix TDS2000) for SPI/USB packet alignment capture.
- Sample Size: 50 iterations per polling rate/DPI configuration to calculate mean deviation and 1% lows.
The Asynchronous Gap: Why Jitter Occurs
A gaming mouse and a PC operate on two independent internal clocks. The mouse sensor captures images of the surface (frames) at a high frequency—often exceeding 20,000 frames per second (FPS) in flagship models. Meanwhile, the PC requests updates via the USB bus at a fixed interval, such as 1000Hz (every 1.0ms) or 8000Hz (every 0.125ms).
Because these two clocks are not synchronized, the PC often asks for a movement report at a moment when the sensor has not yet finished its most recent calculation. This results in the PC receiving "stale" data from the previous cycle or a combined packet that represents uneven movement increments. In practice, this manifests as micro-stutter or "stair-stepping" during slow, precise tracking. According to the Global Gaming Peripherals Industry Whitepaper (2026), achieving temporal alignment between these two systems is a critical requirement for modern input fidelity.
The Mechanics of Motion Sync
Motion Sync solves this by aligning the sensor’s data "reads" (via the Serial Peripheral Interface, or SPI) precisely with the PC’s USB polling intervals. Instead of the sensor sending data whenever it is ready, the MCU (Microcontroller Unit) instructs the sensor to wait until just before the next USB poll is expected.
Mathematical Derivation: The 0.5x Polling Rule
A common misconception is that Motion Sync reduces latency. In reality, it introduces a small, fixed delay. Mathematically, in an asynchronous system, the "wait time" for the next USB poll follows a uniform distribution between $0$ and $T$ (where $T$ is the polling interval). The average expected delay is $T/2$. By enforcing synchronization, Motion Sync effectively "locks" the delay to the next available poll.
| Polling Rate | Polling Interval ($T$) | Motion Sync Penalty ($T/2$) | Total Theoretical Sensor Latency |
|---|---|---|---|
| 1000Hz | 1.0ms | ~0.5ms | 1.5ms |
| 2000Hz | 0.5ms | ~0.25ms | 1.25ms |
| 4000Hz | 0.25ms | ~0.125ms | 1.125ms |
| 8000Hz | 0.125ms | ~0.0625ms | 1.0625ms |
Values represent the additive cost of synchronization observed in standard industry firmware implementations (±0.02ms variance).
Deep Experiment: 8000Hz and the 4K Resolution Frontier
The 8000Hz Latency Paradox
At 8000Hz, the USB polling interval is a mere 0.125ms. The Motion Sync penalty drops to an imperceptible 0.0625ms. For perspective, the human blink takes about 100ms—nearly 1,600 times longer than this delay.
Our laboratory data suggests that at ultra-high polling rates, the debate over whether to enable Motion Sync becomes less contentious. The benefit of eliminating jitter remains, while the latency cost becomes mathematically negligible for the human nervous system. This creates a compelling technical case for competitive integrity: you gain perfect consistency for a cost that is statistically insignificant.
The 1705 DPI Calculation: Avoiding Pixel Skipping
A startling discovery during our 4K testing involved the Nyquist-Shannon sampling criterion applied to screen resolution. To achieve a 1:1 ratio where one mouse "count" corresponds to at least one pixel of movement on a 3840-pixel wide (4K) display during a standard micro-adjustment swipe:
The Formula: $$\text{Required DPI} = \frac{\text{Horizontal Resolution}}{\text{Physical Swipe Distance (inches)}}$$
In our simulation of a 2.25-inch flick (a common distance for precise target acquisition at medium sensitivity), the calculation is: $$3840 \text{ pixels} / 2.25 \text{ inches} \approx 1706.6 \text{ DPI}$$
To ensure the sensor provides enough granularity to address every pixel without interpolation, we recommend rounding up to at least 1750 DPI. Using a lower setting (like 400 or 800) on a 4K screen may result in "pixel skipping," where the cursor jumps over screen coordinates because the sensor lacks the resolution to report those intermediate positions.
Scenario Analysis: When to Use Motion Sync
Scenario A: The High-Polling Power User (4000Hz - 8000Hz)
If you are running a modern CPU (Ryzen 7000 series or Intel 13th/14th Gen) and a monitor with a refresh rate of 240Hz or higher, we highly recommend enabling Motion Sync. At these frequencies, the synchronization cost is so low that the stability gains for your muscle memory far outweigh the delay.
Scenario B: The Legacy or Battery-Focused User (1000Hz)
At 1000Hz, the decision is more nuanced. The 0.5ms penalty is measurable, and some professional players prefer to disable it to shave off every possible microsecond. However, for the majority of users, the elimination of micro-stutter is more visually and tactically beneficial than the 0.5ms saved.
Hardware Constraints and System Optimization
The CPU Bottleneck
Running an 8000Hz mouse with Motion Sync enabled places a significant load on your CPU's Interrupt Request (IRQ) handling. We have observed that this can increase CPU usage by 5-10% in titles like Valorant. If your system experiences frame drops, it is likely a CPU bottleneck; in such cases, dropping to 4000Hz is a more stable configuration.
USB Topology Requirements
For stable performance, the mouse receiver must be plugged into a Direct Motherboard Port.
- Avoid: USB Hubs, Front Panel Case Headers, and Monitor Passthroughs.
- Reason: These intermediate connections introduce signal noise and shared bandwidth issues that can desynchronize the Motion Sync handshake.
Compliance, Safety, and Regulatory Standards
As performance-driven peripherals push higher wireless frequencies, they must adhere to rigorous international standards.
- Wireless Integrity: According to the FCC OET Knowledge Database (KDB), devices in the 2.4GHz spectrum must meet specific RF exposure requirements. This ensures 8000Hz signals do not interfere with local Wi-Fi networks.
- European Safety: The EU Radio Equipment Directive (RED) sets essential health and safety requirements for electromagnetic compatibility.
- Battery Transport: Modern mice must comply with the IATA Lithium Battery Guidance Document (UN3481) to ensure safety during air transport.
Conclusion: Achieving the Competitive Edge
Motion Sync represents a shift in gaming philosophy: from chasing the absolute lowest theoretical latency to prioritizing the highest possible consistency. At the 8000Hz level, the trade-off is virtually non-existent. By pairing a high-performance sensor with a 4K monitor and a DPI of at least 1750, you remove the technical bottlenecks that often sit between a player and their peak performance.
Disclaimer: This article is for informational purposes only. Technical specifications and performance may vary based on individual system configurations, firmware versions, and environmental factors. Always refer to your specific device's user manual for safety and setup instructions.
